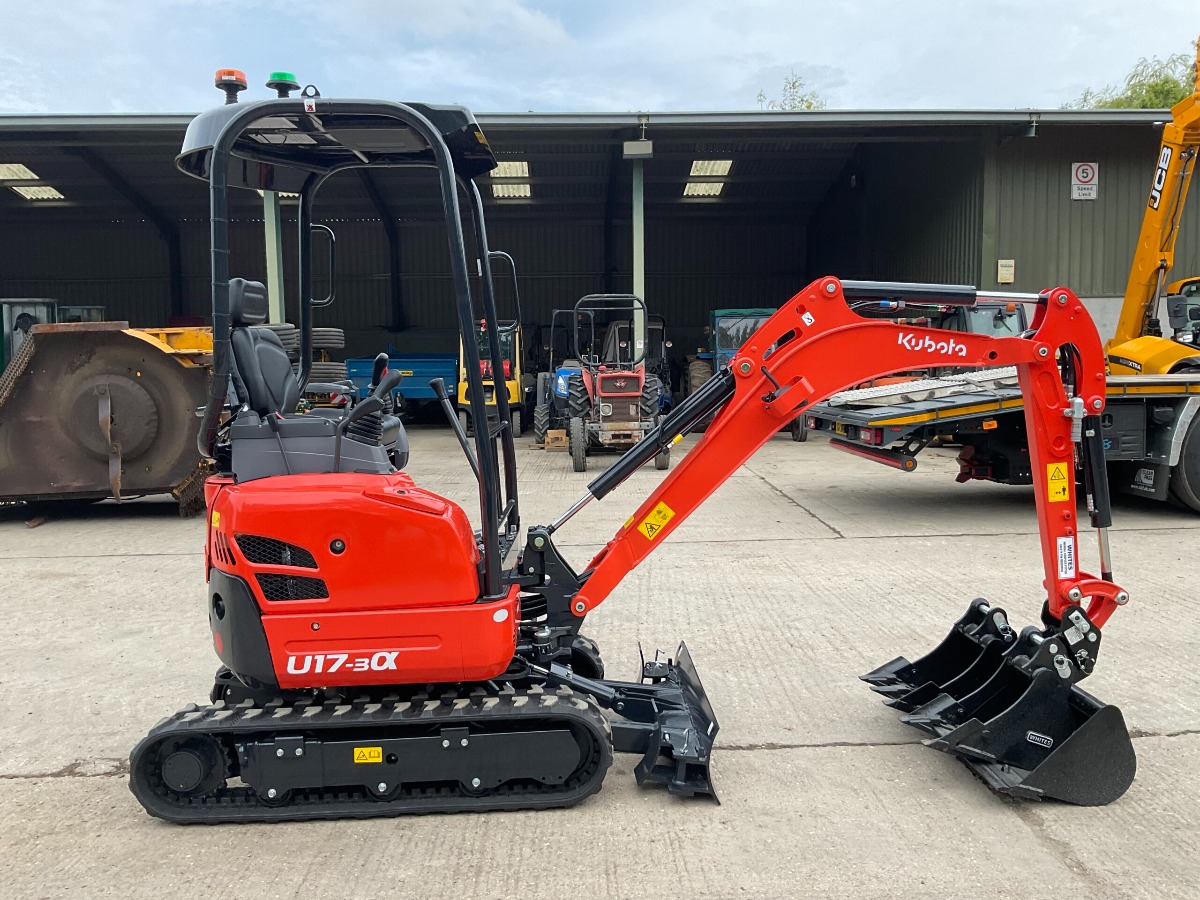

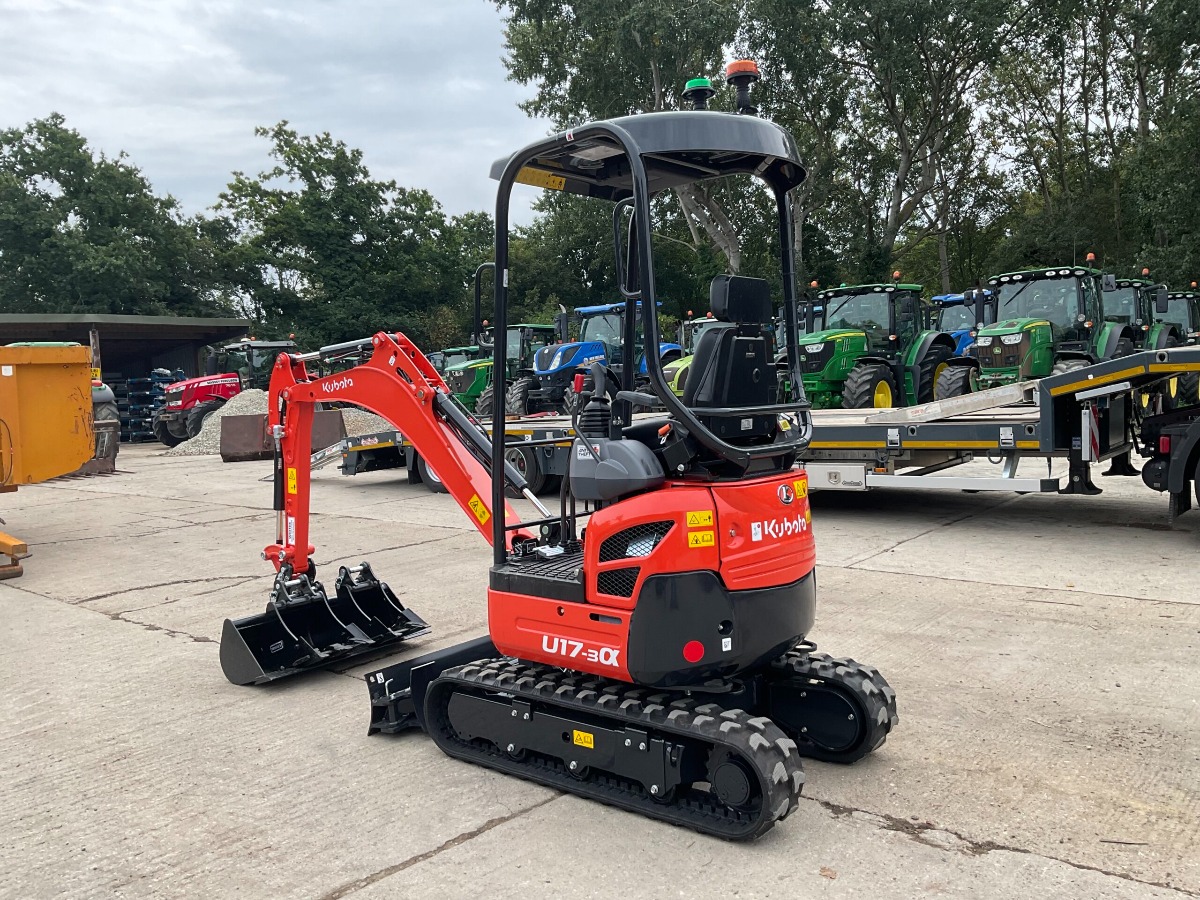

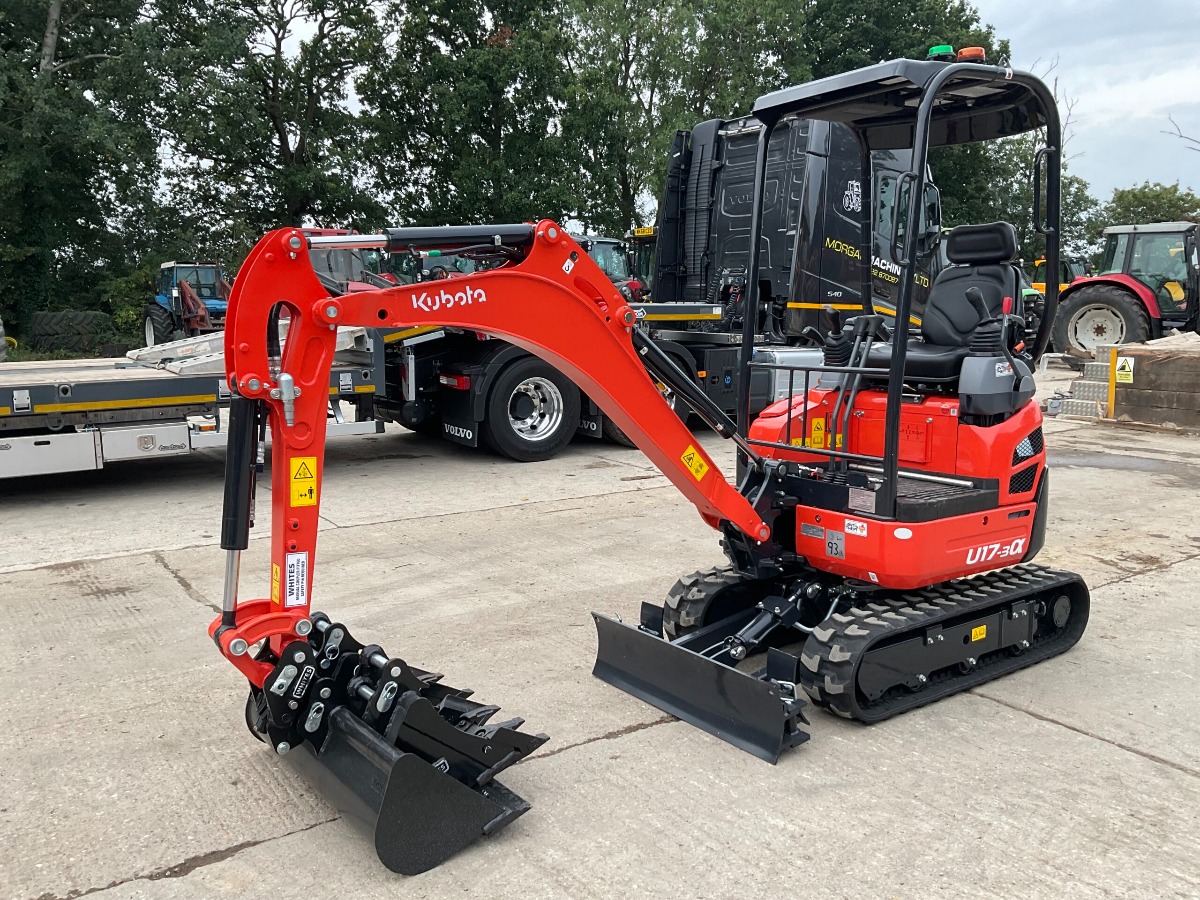

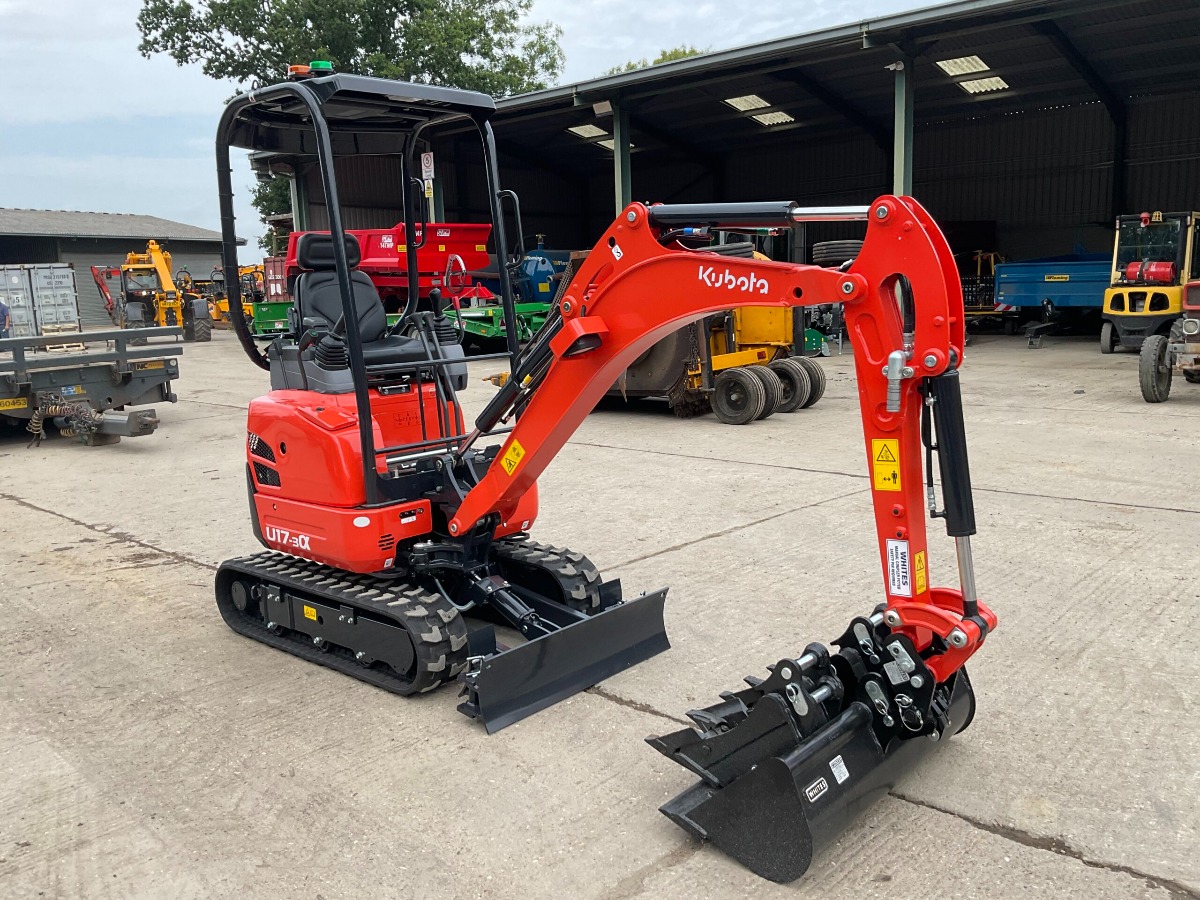

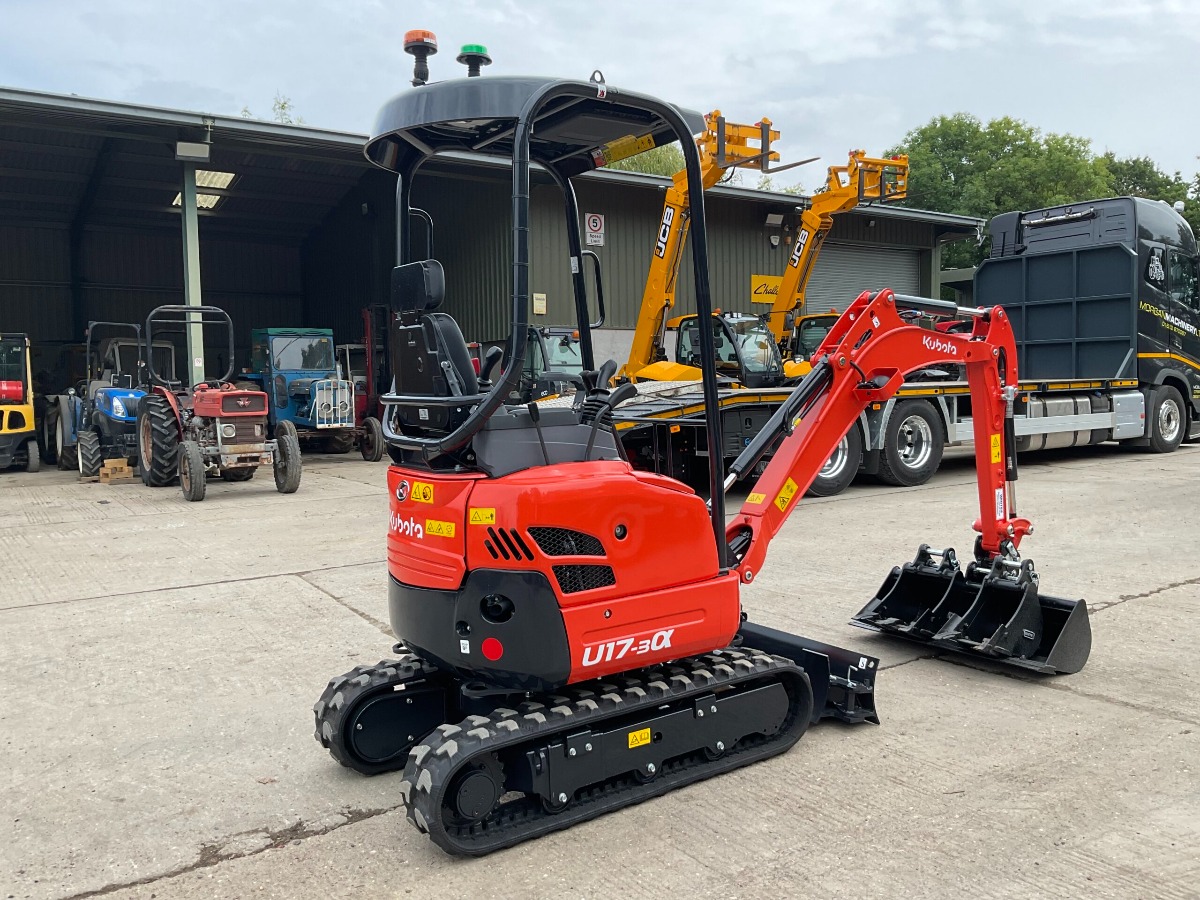

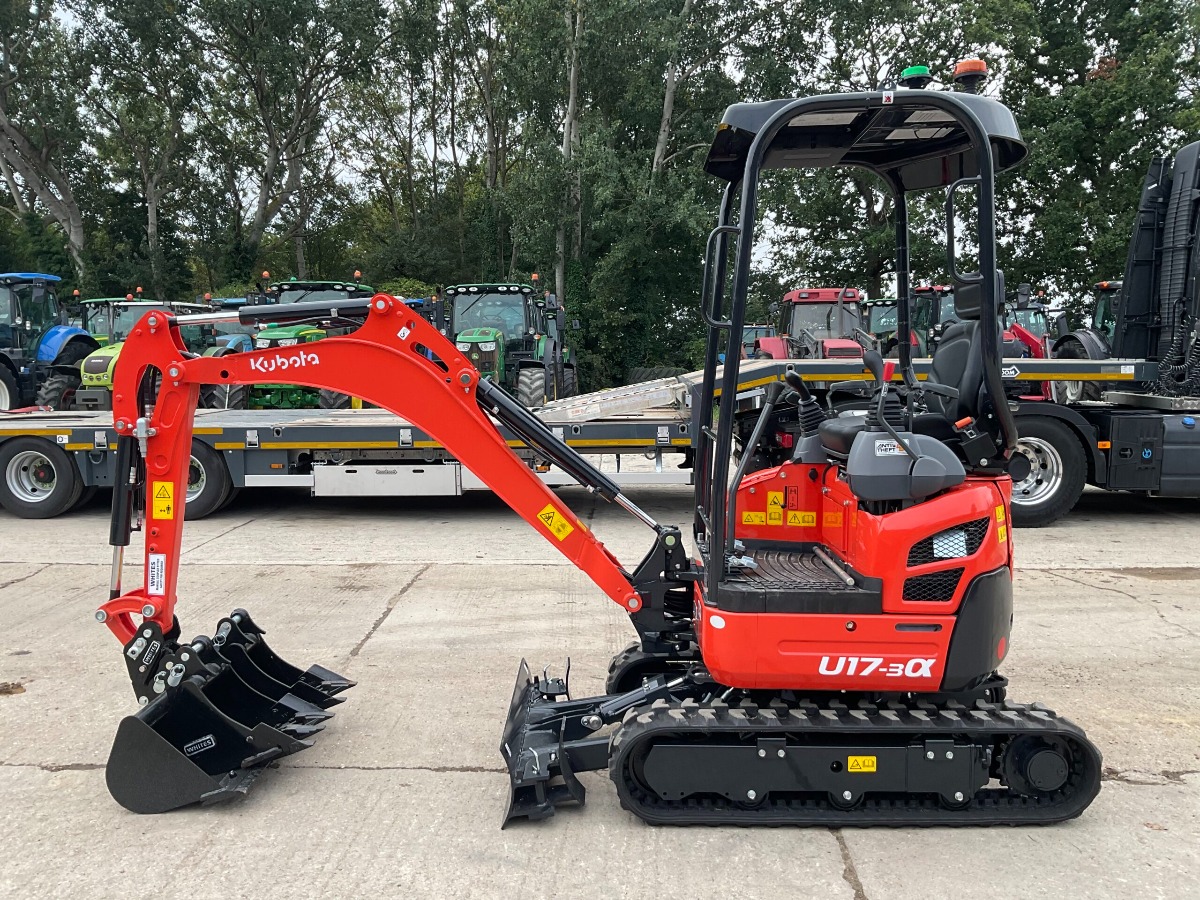

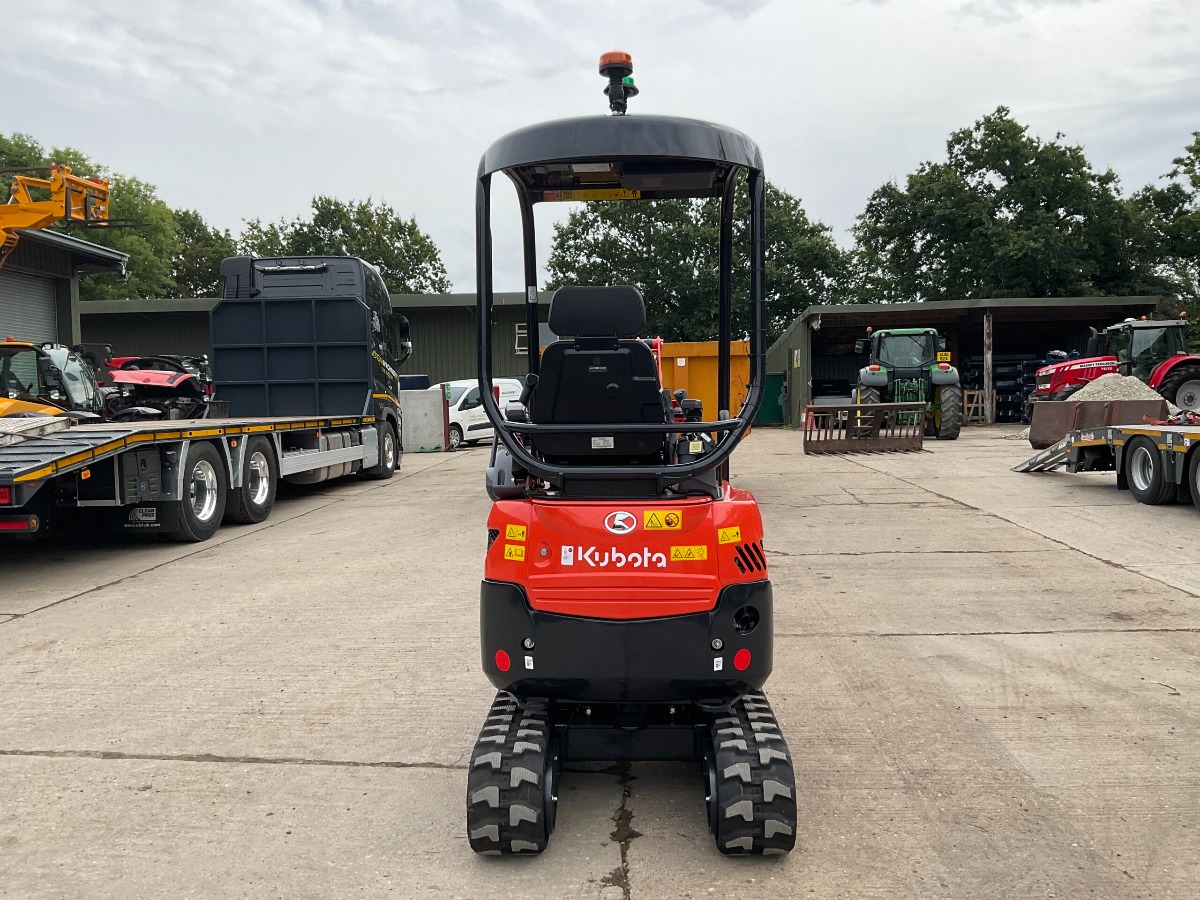

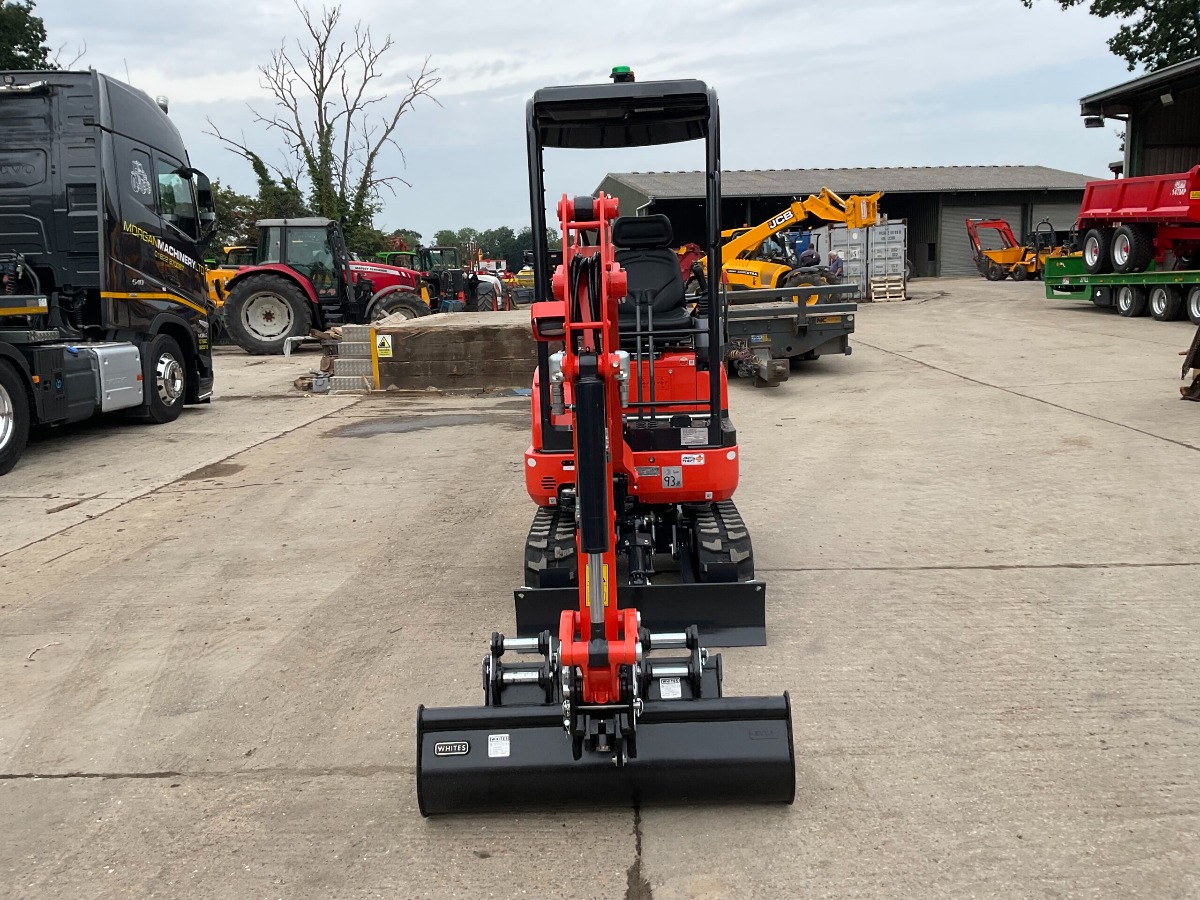

Mini Excavator

Description

Features
Powered by a reliable 15 HP air-cooled engine with EPA certification

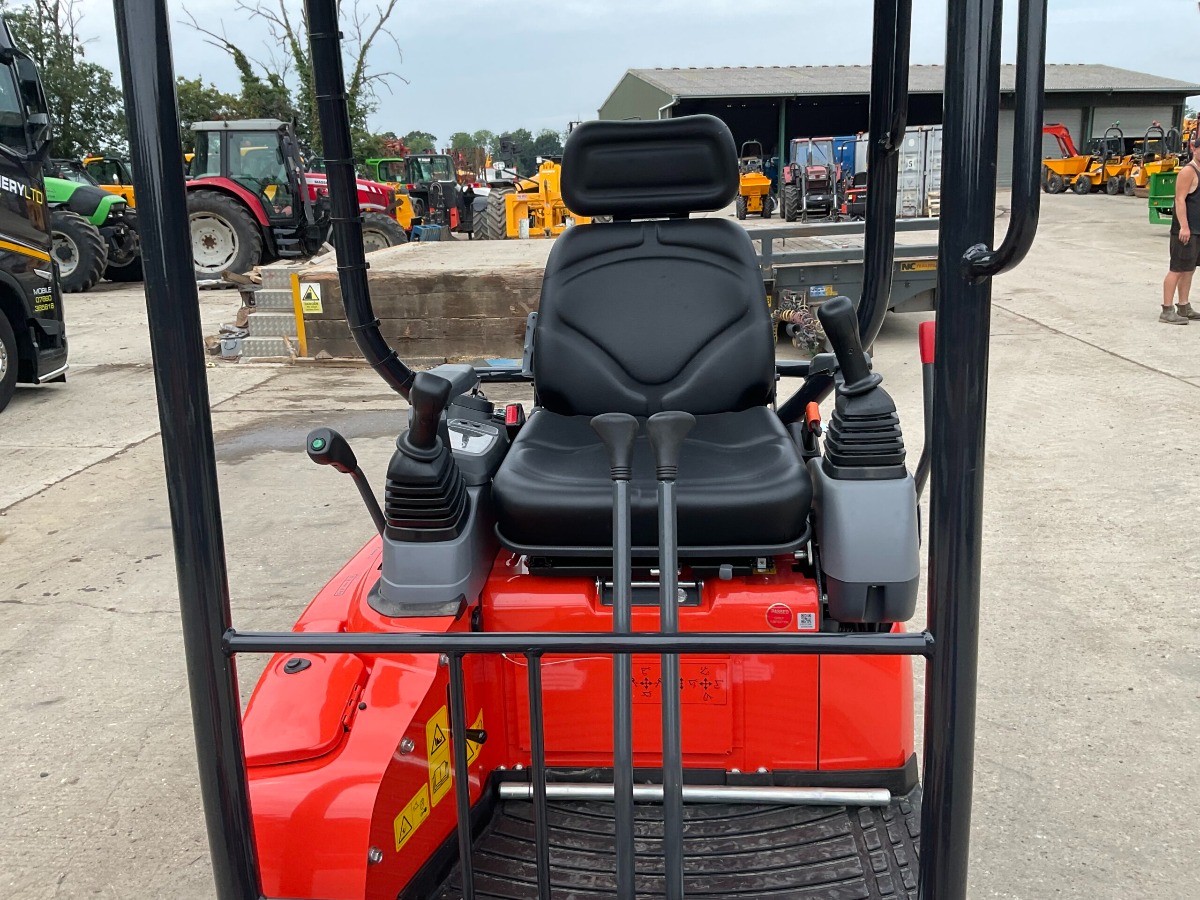

Equipped with a convenient and simple-to-use operation panel; minimal training required
Safety is prioritized with reduced dead angles to protect workers and prevent accidents
Spacious operator area is ergonomically designed for maximum comfort
Includes a standard dozer blade with the option for a mechanical thumb attachment

Specifications
Operating weight: 1900 lb
Standard bucket capacity: 0.5 cu-ft
Working device form: Backhoe
Max. travel speed: 1.8 km/h
Max. gradability: 30°
Track ground pressure: 25.53 kpa
Hydraulic oil tank capacity: 12.5 L
Fuel tank capacity: 5.5 L
Max. tractive force: 6.8 kN
Product net weight: 1900 lb
The name of the manufacturer of the hydraulic pump is Parker, with a flow rate of 21.6L/min.

Operating Range

Max. digging depth: 61-½”
Overall operating height(fully raised): 100”
Max. digging radius: 114”
Max. unloading height: 75”
Min. turning radius: 61”
Max. lifting height dozer blade: 6”
Max. depth dozer blade: 6”
Dipper boom digging force: 6.1 kN
Bucket digging force: 9.2 kN

Main Dimensions

Track length: 47”
Upper chassis ground clearance: 15”
Counterweight turning radius: 32”
Chassis width: 36”
Track width: 7”
Track height: 12”
Transportation length: 85”
Height of seat to ground: 40-½”
Overall height: 87”

Engine

Single cylinder, air-cooled, 4-stroke, OHV
Displacement: 420 cc
Max. out power: 8.6kw/3600 RPM
Start type: Electric start w/battery included
Oil capacity: 1.16 US Qt (1.2 L)
Engine oil type: 10W-30
