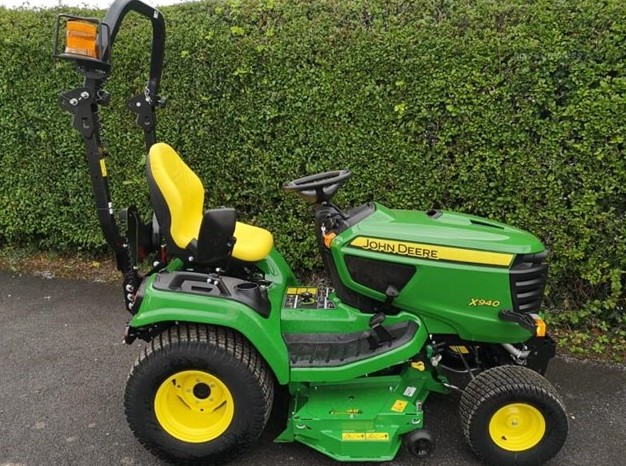

John Deere X940

Description

John Deere X940
137 cm mower deck
Mulch Control Features

ENGINE
24.5 hp* (18 kW) at
3400 rpm
Displacement 993 cm³
Model 3TNM74F
Three-cylinder diesel engine with water cooling and
cast iron cylinder liners, overhead valves
Pressure lubrication with replaceable oil filter
Vibration-damping engine mount with rubber bearings, two-piece high-performance dry air filter with clogging indicator

FUEL SYSTEM
Diesel
Fuel tank 20 l
Instrument panel with hour meter and
fuel gauge

ELECTRICAL SYSTEM
12 V (340 CCA) battery
Engine-mounted alternator with charge controller, 40 A
Halogen headlights, taillights
Rear work lights & reversing lights
Seat, PTO and parking brake switches
12 V socket with switch AXLE

TRANSMISSION
Two-wheel drive with hydrostatic transmission K90
Pedal control Twin Touch™
Engine speed limiter,
rear-wheel drive with traction control
, wet disc brakes
, internal hydraulic PTO clutch with
modulated engagement
, forward speed 0–14 km/h,
reverse speed 0–10 km/h,

CHASSIS:
MIG robot-welded frame
, standard front weight mount for up to four
19 kg Quik-Tatch™ weights,
integrated hitch mount
, cast iron front axle,
25 mm front knuckles ,
replaceable metal spindle bushings
, foldable rollover protection with safety belt ,
illuminated instrument panel with gauges and
indicator lights
: hour meter, coolant temperature,
fuel level, oil pressure
warning light, charging warning light, parking brake warning light,
diagnostic codes, PTO engagement status, start sequence, target cutting zone,
air filter clogging
warning light, glow plug indicator
, reverse-drive implement operation (RIO) option,
turf tires 18×8.50-8 4PR front,
turf tires 26×12-12 4PR rear
Covered toolbox,
fender handles,

STEERING:
Two-wheel power steering,
steering wheel 36 cm, steering column tilt adjustable in six positions,
turning radius 63.5 cm,
uncut turning radius 54 HC – 81,

LIFTING DEVICE:
Hydraulic front linkage kit with two functions and four hydraulic outlets,

OPTIONALLY AVAILABLE MOWERS
Side discharge, cutting width 122, 137 or 152 cm,

mower deck housing made of stamped sheet steel 3.4 mm (48A) or 3.8 mm (54 HC, 60 HC),
deep mower deck design with rolled edges,
three belt-driven spindles and blades,
cleaning port for mower deck
, belt guard,
cutting height adjustment 25 to 133 mm in 6.4 mm increments,
cutting height adjustment from the driver’s seat
