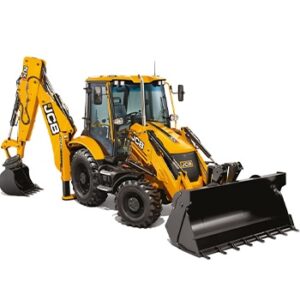

Jcb backhoe
Key Specs of JCB 3DX Backhoe Loader Hydraulic oil 110 Ltr Max. lift capacity 1490 Kg Loader Bucket capacity 1.1 Cum Max. reach at full height 880 mm Max Operating Weight 7200 Kg Backhoe Bucket capacity 0.26 Cum
Description
Engine | |||
|---|---|---|---|
| Model | JCB 430 | ||
| Displacement | 3 cc | ||
| Gross Power | 37 kW (49hp) @ 2 050 rpm | ||
| Maximum Torque | 270 NM | ||
Loader General Dimension | |||
|---|---|---|---|
| Dump Height | 2740 mm | ||
| Load Over Height | 3320 mm | ||
| Hinge Pin Height | 3540 mm | ||
| Hinge Pin Forward Reach | 250 mm | ||
| Reach At Ground | 1520 mm | ||
| Max Reach At Full Height | 1150 mm | ||
| Rollback At Ground | 45 Degree | ||
| Dump Angle | 38 ° | ||
Backhoe Loader Dimension | |||
|---|---|---|---|
| Maxd Dig Depth | 4770 mm | ||
| Reach ground level to Swing Center | 5400 mm | ||
| Reach Ground level to rear wheel center | 6720 mm | ||
| Reach at full height to slew center | 2900 mm | ||
| Max Working Height | 5970 mm | ||
| Max Load Over Height | 4180 mm | ||
| Bucket Rotation | 185 deg | ||
| dipper Tear Out Force | 3257 kgf | ||
Overall Dimension & Weight | |||
|---|---|---|---|
| Max Operating Weight | 7200 Kg | ||
| Transport Length | 5900 mm | ||
| Width Over Bucket | 2350 MM | ||
| Track Width Rear | 1730 MM | ||
| Track Width Front | 1860 MM | ||
| Wheelbase | 2170 mm | ||
| Minimum Ground Clearance | 310 mm | ||
| Height to top of cabin | 2870 mm | ||
Hydraulic System | |||
|---|---|---|---|
| Pump Flow | 114 Lpm | ||
Service Capacities | |||
|---|---|---|---|
| Engine Oil | 15 Ltr | ||
| Rear Axle | 20 Ltr | ||
| Hydraulic Oil Replacement | 92 Ltr | ||
| transmission Oil Capacitysystem | 17.5 Ltr | ||
| Fuel Tank | 128 Ltr | ||
| Fuel Type | Diesel | ||
| Coolant | 16.5 Ltr | ||
| Hydraulic oil – System | 110 Ltr | ||
Axle | |||
|---|---|---|---|
| Rear | Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short prop shaft from gear box | ||
| Front | Steer axle, centrally pivoted, with oscillation angle of 16 | ||
Steering | |||
|---|---|---|---|
| Type | Power track steering | ||
| System Pressure | 160 bar | ||
| Turning Circle Diameter Otside Bucket | 11600 mm | ||
| Turning circle Diameter Outside Bucket Not Braked | 8640 mm | ||
Brakes | |||
|---|---|---|---|
| Brakes service | JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance. Operated | ||
| Brakes Parking | Hand operated, disc brakes on rear axle input disc. | ||
Tyre | |||
|---|---|---|---|
| Standard tyre front | 9 x 16 – 16 PR | ||
| standard tyre rear | 16.9 x 28 – 12 PR | ||
Electrical System | |||
|---|---|---|---|
| Battery | 12 V | ||
